¶ Common Electrical Connectors in Hobbyist Projects
Warning: Electricity can be dangerous. The below content is AI generated and should only be used as an overview. Do your own Dilligence. The max ratings ae NOT TO BE TRUSTED!
¶ 1. Dupont Connectors and Header Pins
Dupont connectors and header pins are widely used for breadboarding, prototyping, and PCB connections. They come in various pin configurations, supporting both male and female connections. These connectors are ideal for:
- Breadboarding: Easily connecting and disconnecting components on a breadboard without soldering.
- Prototyping: Quick assembly and testing of circuits.
- PCB Connections: Linking different parts of a PCB or connecting PCBs together with jumper wires or ribbon cables.

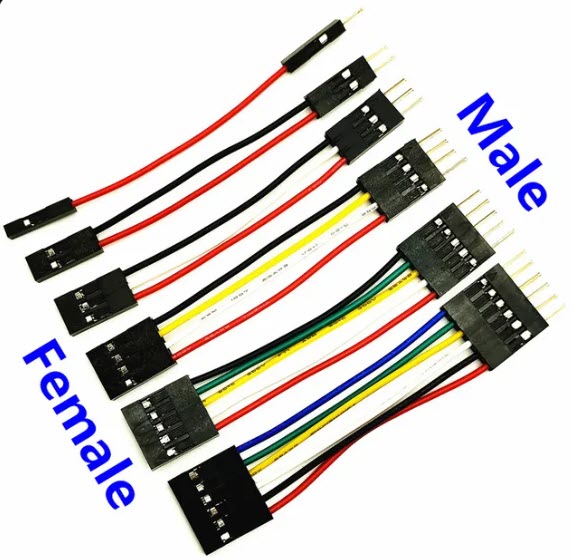

¶ 1.1 Dupont Connectors
- Wire Gauge: Typically 28-24 AWG (0.32-0.51 mm)
- Current Rating:
- 28 AWG: Up to 1A
- 24 AWG: Up to 2A
- Voltage Rating: Typically 20-30V DC, some up to 50V
- Usage Example: Sensor data connections on a breadboard

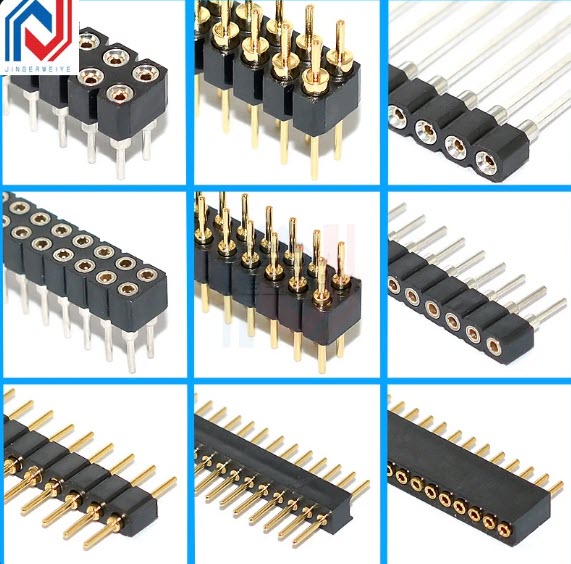

¶ 1.2 Header Pins
- Description: Rigid metal pins embedded in a plastic base
- Types: Male and female headers
- Common Pitch: 0.1" (2.54mm)
- Compatibility:
- Breadboards
- PCBs (can be soldered directly)
- Dupont connectors
- Configurations: Single row, double row, various pin counts
- Applications: Prototyping, PCB connections, modular designs
- Electrical Specifications:
- Current Rating: Typically 1-3A per pin (depends on pin material and thickness)
- Voltage Rating: Typically 50V to 100V (check manufacturer specs for exact rating)
- Usage Example: Connecting modules on a PCB
¶ 2. JST Connectors
JST connectors are compact, reliable connectors used in small electronics. They come in various series, often used in battery connections and small PCB assemblies.

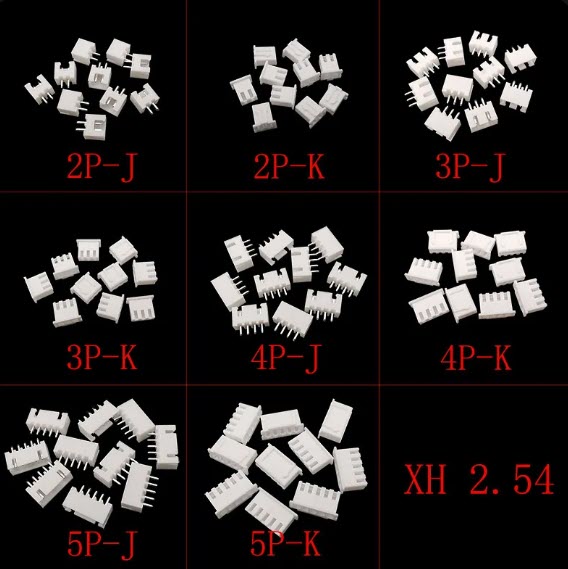

¶ 2.1 JST-XH Series (2.5 mm pitch)
- Wire Gauge: Typically 28-22 AWG (0.32-0.64 mm)
- Current Rating: Up to 3A
- Voltage Rating: Up to 250V
- Usage Example: Connecting battery packs to PCBs

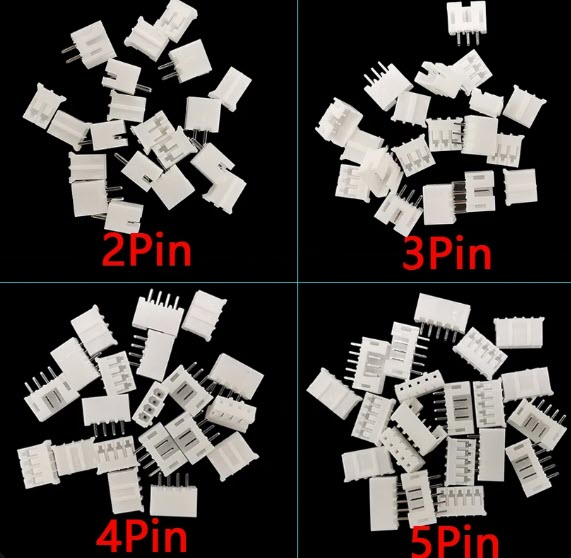

¶ 2.2 JST-PH Series (2.0 mm pitch)
- Wire Gauge: Typically 30-24 AWG (0.25-0.51 mm)
- Current Rating: Up to 2A
- Voltage Rating: Up to 250V
- Usage Example: Connecting small sensors or modules to microcontrollers
¶ 3. Molex Connectors
Molex connectors are versatile and robust, commonly used in computer and automotive applications. They come in different series for various applications.

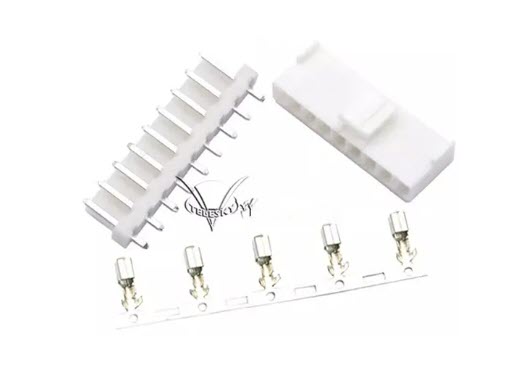

¶ 3.1 Molex KK Series (2.54 mm pitch)
- Wire Gauge: Typically 24-18 AWG (0.51-1.02 mm)
- Current Rating: Up to 10A
- Voltage Rating: Up to 250V
- Usage Example: Interconnecting PCBs in a computer system

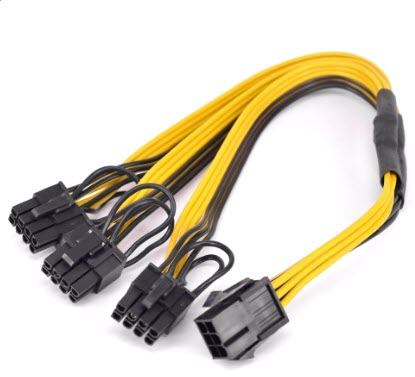

¶ 3.2 Mini-Fit Jr. Series (4.2 mm pitch)
Aliexpress terms:
- 5557 connector
- 5559 connector
- Mini-Fit Jr
- Wire Gauge: Typically 16-24 AWG (1.29-0.51 mm)
- Current Rating: Up to 13A
- Voltage Rating: Up to 250V
- Usage Example: Power connections on computer motherboards and GPUs

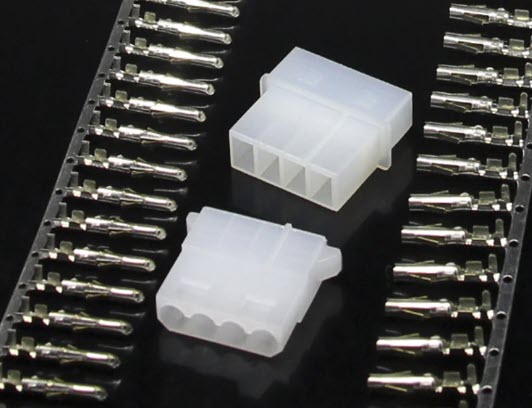

¶ 3.3 Molex 8981 Series (Large 4-pin Power Connector)
Aliexpress terms:
- 8981 connector
- Molex ATX connector
- Official Name: AMP MATE-N-LOK Power Connector
- Common Names: Molex 4-pin, ATA Power Connector, Peripheral Power Connector, LP4
- Configuration: 4-pin single row
- Common Use: Various PC peripherals, older hard drives, optical drives, case fans
- Voltage Supply:
- Yellow wire: +12V
- Red wire: +5V
- Black wires: Ground (0V)
- Current Rating: Up to 11A on 5V, up to 6A on 12V
- Wire Gauge: Typically 18 AWG (1.02 mm)
- Key Features:
- Widely used in PC power supplies
- Can be adapted for use with SATA devices
- Often daisy-chained in power supply cables
- Usage Example: Powering legacy hard drives and optical drives
¶ 4. XT60 Connectors
XT60 connectors are high-current connectors used primarily in RC (radio-controlled) applications. They are designed to handle high currents and voltages.

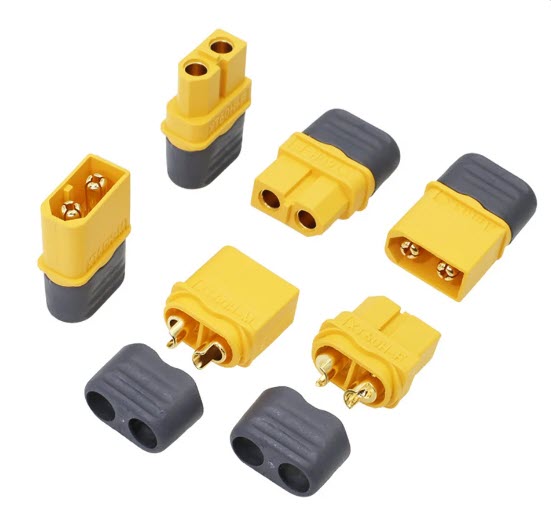

¶ 4.1 Standard XT60 Connectors
- Wire Gauge: Typically 12-10 AWG (2.05-2.59 mm)
- Current Rating: Up to 60A
- Voltage Rating: Up to 500V
- Power Rating: Up to 3000W
- Usage Example: Connecting high-current batteries to motors in RC vehicles
¶ 4.2 XT60H (Upgraded XT60)
- Wire Gauge: Typically 12-10 AWG (2.05-2.59 mm)
- Current Rating: Up to 65A
- Voltage Rating: Up to 500V
- Power Rating: Up to 3250W
- Usage Example: Enhanced power connections for high-performance RC applications
These connectors are fundamental in hobbyist electronics projects, providing reliable connections for various components and ensuring easy prototyping and assembly.
